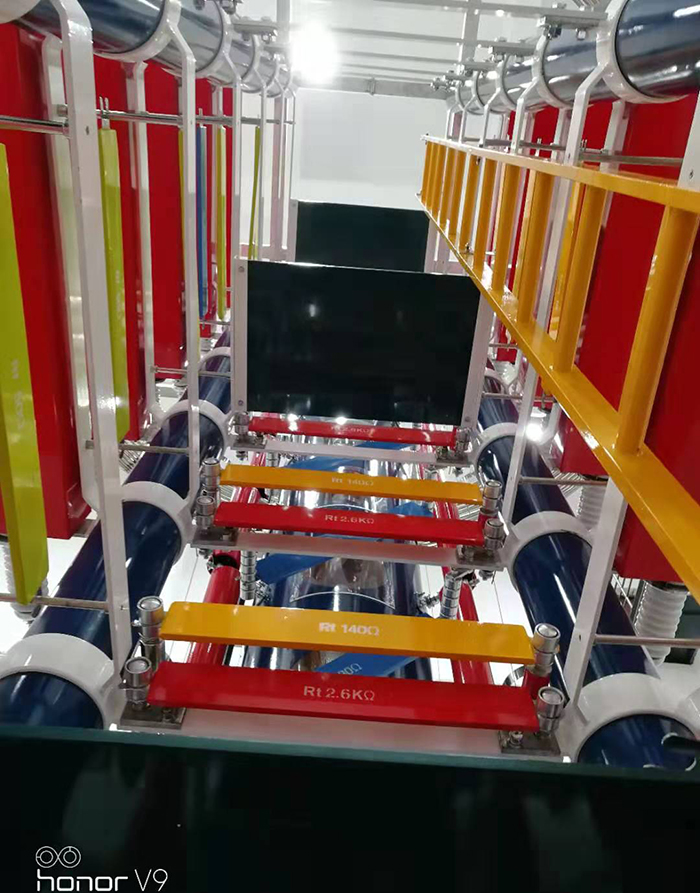

Yangzhou Sute Technology's Fully Enclosed SF6 Gas Lightning Impulse Generator is an advanced high voltage impulse testing system designed for lightning impulse tests of electrical equipment, insulation components and power system devices.
Compared with traditional open-type impulse generators, this SF6 gas insulated design adopts a fully enclosed structure with excellent insulation performance, compact configuration and enhanced operational safety. The equipment utilizes SF6 gas as the insulating medium to achieve stable high voltage output under a reduced installation footprint.
It is widely applied in GIS testing, power equipment manufacturers, electrical laboratories, research institutes and high voltage testing platforms for verifying insulation performance and evaluating the withstand capability of electrical products against lightning impulse voltage.
Product Applications
Applications of SF6 Gas Lightning Impulse Generator
The Fully Enclosed SF6 Gas Lightning Impulse Generator is mainly used for impulse voltage testing of:
Power Equipment Testing
- High voltage transformers
- Switchgear equipment
- GIS (Gas Insulated Switchgear)
- Circuit breakers
- Insulators and bushings
Electrical Component Testing
- Insulation accessories
- Cable accessories
- High voltage components
- Electrical connection systems
Research and Testing Platforms
- High voltage laboratories
- Scientific research institutions
- Product development testing systems
- Type testing platforms
Product Advantages
Why Choose Fully Enclosed SF6 Gas Insulation Technology?
1. Compact Fully Enclosed Structure
The fully enclosed SF6 gas insulation structure significantly reduces the equipment size compared with conventional air-insulated impulse generators.
This compact design is especially suitable for laboratories and testing facilities where installation space is limited.
2. Excellent Insulation Performance
SF6 gas provides superior insulation characteristics, enabling the generator to achieve reliable high voltage operation with stable electrical performance.
The enclosed gas insulation system helps reduce external environmental influence and improves testing repeatability.
3. Enhanced Safety and Reliability
The closed structure provides better protection for internal components and improves operational safety during high voltage impulse testing.
The system is designed for long-term industrial operation with stable performance and reduced maintenance requirements.
4. Flexible Application Capability
The system can be customized according to different customer requirements, including:
- Output voltage level
- Test object requirements
- Laboratory configuration
- Integration with existing high voltage test systems
Technical Features
Main Features of Fully Enclosed SF6 Gas Lightning Impulse Generator
High Voltage Impulse Generation
The system generates standardized lightning impulse voltage waveforms for evaluating insulation withstand capability of electrical equipment.
SF6 Gas Insulated Design
Using SF6 gas as insulation medium, the generator provides:
- High dielectric strength
- Stable insulation performance
- Compact equipment structure
- Reliable operation under high voltage conditions
Integrated Testing Solution
The generator can be integrated with:
- High voltage measurement systems
- Digital control systems
- Impulse voltage measuring devices
- Automated testing platforms
to provide complete high voltage impulse testing solutions.
Engineering and Manufacturing Capability
Designed for Professional High Voltage Testing Applications
Based on years of experience in high voltage testing technology, Yangzhou Sute Technology provides customized SF6 gas insulated impulse testing solutions for global customers.
Our engineering team focuses on:
- High voltage insulation design
- SF6 gas application technology
- Electrical parameter optimization
- Testing system integration
Each system is manufactured with strict quality control procedures to ensure reliable performance in demanding laboratory and industrial environments.
Typical Applications
Industries Served
The Fully Enclosed SF6 Gas Lightning Impulse Generator is widely used by:
- GIS manufacturers
- Power equipment manufacturers
- Electrical insulation companies
- Research laboratories
- Universities and testing institutions
- Power system testing organizations
Customized Solution
Customized SF6 Gas Impulse Testing System
Different electrical products require different impulse testing conditions. Yangzhou Sute Technology provides customized solutions according to customer requirements, including:
- Equipment configuration design
- Technical parameter optimization
- Test system integration
- Installation guidance
- Technical support
Our goal is to provide reliable high voltage testing solutions that help customers improve product quality and testing efficiency.
FAQ
What is a Fully Enclosed SF6 Gas Lightning Impulse Generator?
A Fully Enclosed SF6 Gas Lightning Impulse Generator is a high voltage impulse testing device that uses SF6 gas insulation technology to generate lightning impulse voltage for testing electrical equipment insulation performance.
What are the advantages of SF6 gas insulation compared with traditional impulse generators?
SF6 gas insulation provides higher dielectric strength and allows a more compact equipment structure, making it suitable for modern high voltage laboratories and testing facilities.
What applications can this impulse generator be used for?
It is commonly used for GIS testing, power equipment testing, insulation component evaluation and high voltage research applications.
